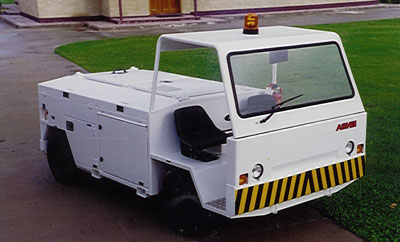

Self- Propelled Ground Power Unit (GPU)

selfpropelledgpu

The Self- Propelled Ground Power Unit (GPU) is designed to provide electric current to all types of aircraft, both commercial and military, whose onboard system is equipped with AC three-phase, 400 Hz 115/200 V.

It is also available with a DC kit to supply up to 2.500 A (peak) and is equipped with a spacious operator’s post for driver and co-pilot. It is purpose built from the start as an autonomous self-propelled GPU, maximizing space and component interface resulting in a compact, highly maneuverable and versatile vehicle. The unit can be used as a tow tractor as it is equipped with a rear tow hook.

The unit complies with the norm EN-12312-20

It is available with a wide range of options such as spacious 2/3 man cabin in open or enclosed version, 3 different outputs on DC Kit: 12V; 24V. 28,5V. Oil Management System for automatic checks/topping up, etc

  • Uses only one diesel engine

  • Up to 140 KVA's, 400 Hz A.C.

  • Up to 2.500 A (peak) at 28, 5V D.C.

  • Digital displays

  • Tow tractor with 3.000 lbs draw-bar pull capacity

More Information
