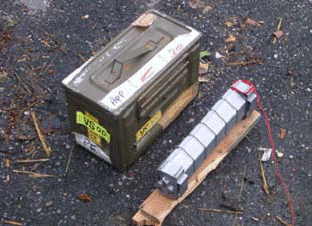

The MINIMOD™ Mk2 is a lightweight, explosively driven, water disruptor for use against small to medium sized IEDs. It shares the same essential features as the larger BootBanger and MLVD and is ideal for disrupting IEDs the size of a brief-case up to a large suitcase or even an animal carcass. The Minimod uses patented technology for producing a shaped charge using sheet explosive or detonating cord as the propellant and water or salt and water as the projectile. Each module consists of two containers: a tamper and a projectile, which are fitted together, sandwiching the explosive charge. Endcaps hold the elements together and allow separate modules to be joined side-by-side or end-to-end according to
the size and shape of the target.

Dimensions: 300 x 85 x 60mm (13 x 3½ x 2½ in)
Weight empty = 0.18kg
Weight full = 0.8kg
Total water content = 0.65 litres
Volume of projected water = 0.2 litres
