TEMPSAFE™ is a simple and highly reliable cargo oil pump bearing temperature monitoring system designed for compliance with IACS UR F39. The system includes MMS800 intrinsically safe pocket or surface mounted PT100 temperature transmitters arranged at the bearing case on the pump. The MMS800 transmitters incorporate a ‘rhino-flex’ cable for exceptional durability in the pump room.

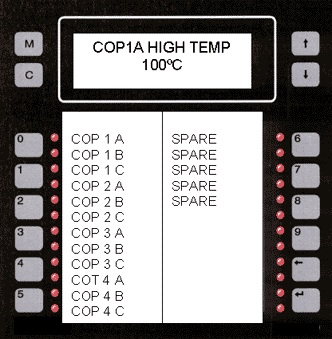

The M3000 control and alarm panel continuously monitors the outputs from all temperature transmitters and provides alarm annunciation in the form of a dedicated LED for each point. An integral 2 line 16 character LCD further identifies the location of the alarm and the measured value. Open collector outputs are available to drive remote annunciators, and an RS485 output provides optional serial comms’.

Other features:

• SIMPLE PT100 TECHNOLOGY
• 316SS CONSTRUCTION, IP67
• INTRINSICALLY SAFE
• IMMEDIATE IDENTIFICATION OF ALARM SOURCE
• SINGLE PENETRATION INTO PUMP ROOM
• RUGGED
• SIMPLE INSTALLATION
• COMPLIANT WITH IACS UR F39
