Scanna Scansilc X-ray

Scansilc 2520



DR (Digital Radiography) Portable X-Ray systems use electronic X-Ray plates directly linked by cable or Wi-Fi to an X-Ray generator and laptop/tablet. The X-Ray generator is fired remotely from the laptop/tablet and the X-Ray images automatically transmit back to the laptop/tablet  from the image panel within a few seconds.

Choose the Scanna  Scansilc DR X-Ray system when you are looking for a lightweight, easy to use DR Portable X-Ray system you can just grab and go, that is also hardened and protected against knocks, drops, dirt and water.  The intelligent lightweight X-Ray image panels allow you to control and adjust your x-ray generator from a safe distance and receive super high quality images back to your laptop in a matter of seconds.

All without any extra interface components

Scansilc X-ray panel, X-ray Generator, Tablet/laptop, 2 Cables – that’s it!.

  • Rugged IP67 rated panel with 1 metre drop sustainment.

  • High-resolution Amorphous-Silicon (A-Si) Imager.

  • ScanView proprietary Imaging software features include Zoom, inverse image /w, pseudo colour, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients. Scansilc panels also compatible with XTK imaging software.

  • Wired and wireless Wi-Fi operation

  • Set up time under 2 minutes

  • Range of imager sizes
More Information
Scanno 1824

“Scanno” Scansilc 1824

  • The future of portable X-ray for tactical operations
  • Lightweight and rugged 18cm x 24cm (approx. 6.8in x  8.7in). panel
  •  Rapid grab and go deployment
  • Available Automatic Exposure Detection (AED) with close coupled panel and tablet for rapid wireless set-up.
  • Highest resolution imaging on the market – best in class 76 micron image clarity
  • Unique unibody design with PB protection  for strength and resilience
  • Resilient enough for CBRNE-  Ingress and Water resistant to IP67


Scansilc 2430

Scansilc 2430 EOD

  • Lightweight and rugged 24cm x 30cm (approx. 9.2in x 11.8in) panel
  •  Superlight compact ruggedized x-ray panel for tactical operations
  •  Highest resolution imaging on the market – best in class 76 micron image clarity
  • High Sharpness Images using Direct Deposit CsI or Gadox technology
  • Unique unibody design with PB protection  for strength and resilience
  • Resilient enough for CBRNE -  Ingress and Water resistant to IP67
Scansilc 3643 CBRNE

Scansilc 3643 EOD

  • Large format rugged 36cm x 43cm (approx.14in x 17in) X-R-ray panel that’s as tough as the job it’s designed for
  • Impact and drop tested to over 1m
  • Switchable wireless and cabled operation
  • Fast set up in less than 2 minutes and fast image acquisition – approx 10 seconds
  • 8.5 hour battery power
  • Imaging Area: 358 x 430mm
  • Resolution: 140 microns, 3.5 lp/mm
  • Dimensions: 466 x 412.2 x 21.5 mm
Scansilc 8686  8686 Image

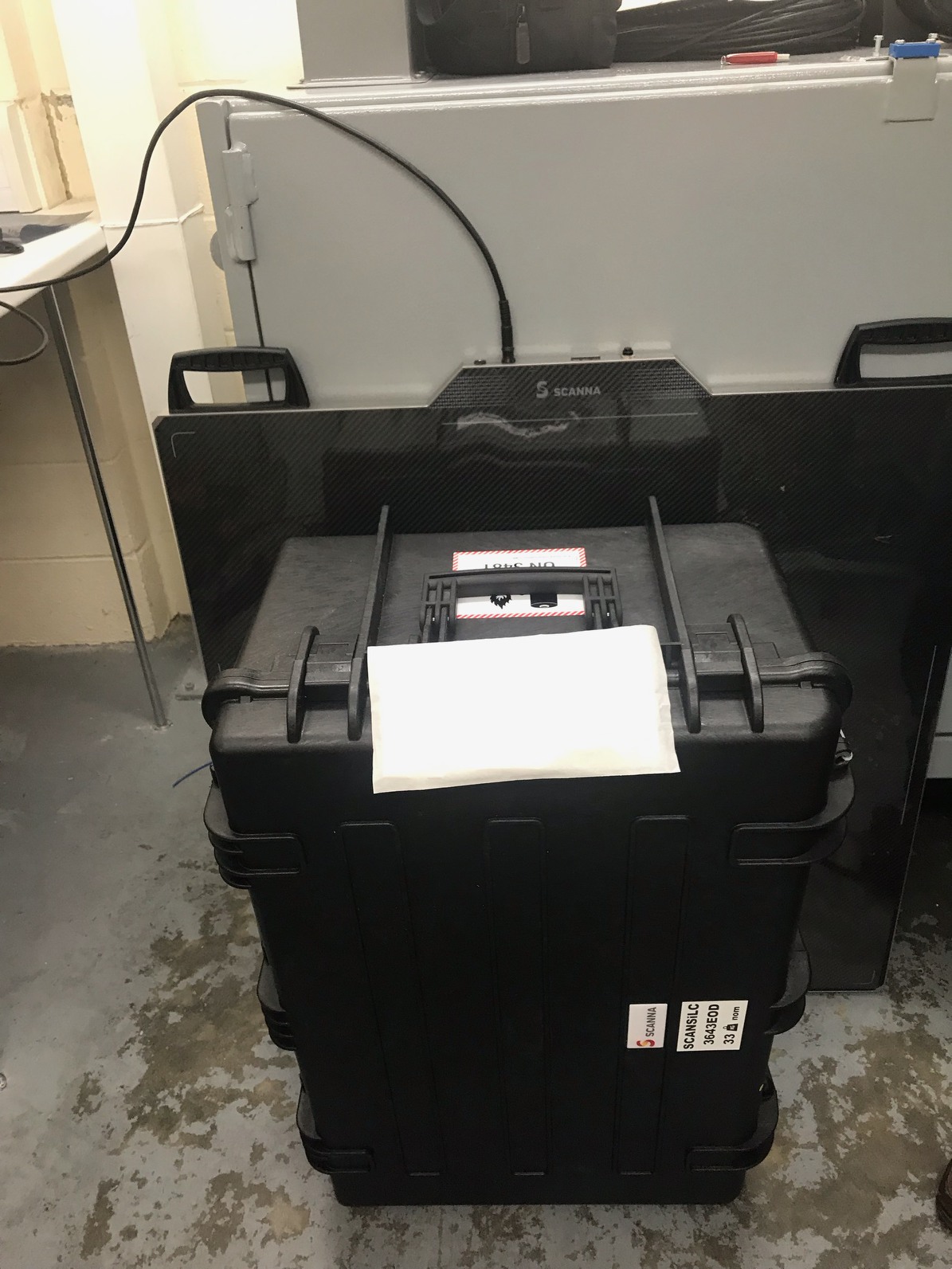

Scansilc 8686

SUPERSIZE X-RAY PANEL FOR LUGGAGE, VEHICLES AND WALLS

Scansilc 8686 is a supersized X-ray image Detector plate capable of covering objects up to 34 x 34” in a single x-ray exposure.
The panel is approximately 4 times larger than conventional ‘large format’ x-ray systems and around 1” thick
The system can operate with both pulsed and CP  X-Ray generators and offers 16 bit, 140 micron high resolution images.
Ideal for investigating larger luggage, vehicles, walls and for special projects.
